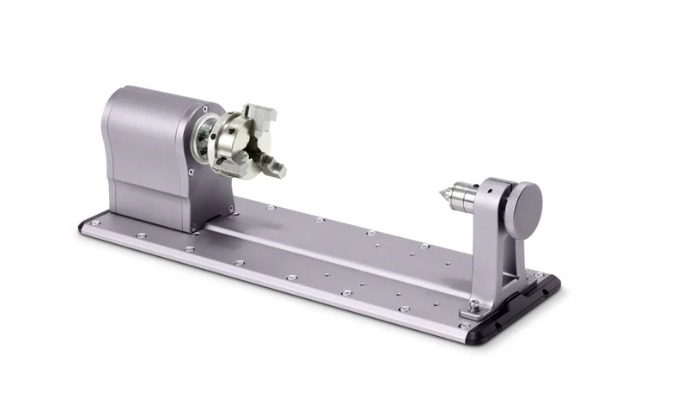

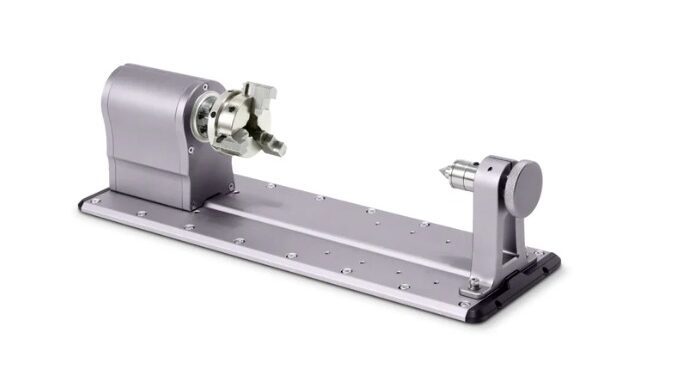

Add a new dimension. The Snapmaker 2.0 Rotary Module adds a 4th axis to your Snapmaker, transforming it into a mighty desktop CNC machining powerhouse, among other things.
CNC machining on a desktop. The rotating module excels at creating three-dimensional artworks such as desktop miniatures and small-scale sculptures. Without extrusion, layer shifting, stringing, or FDM or SLA supports, the rotary module can achieve a degree of intricacy and artistry that no other 3D printing technology can.
Precision machining with no details overlooked. The rotary module employs strain wave gearing and a 100:1 speed reduction to convert power to a lower output speed. This permits the 3-jaw chuck to revolve with a minimum angle of 0.1°. You can make it on uneven and unusual surfaces without skipping a step.
Precision control at your fingertips. The rotary module is a quick sculptor with a 360° continuous rotation and a maximum angular speed of 45° per second. With precise control ranging from 0.2, 1, and 5-degree rotation on the touchscreen, you can notice the difference in every motion.
Complement your collection with great masterpieces.
The Snapmaker 2.0 Rotary Module can create anything, from a courageous dwarf monarch with wavy beards to a beautiful orc chiefdom with renowned weapons to a hollow candle holder. You’re wondering about laser engraving. No issue; the rotating module can handle it as well.
Introduce yourself to Origin Assistant, your next intelligent CNC carving experience. The new touchscreen function, Origin Assistance, improves your rotational carving experience and engagement. Setting origins and Z-offsets, as well as installing materials, is simplified. You can also select Help Mode for a more straightforward process or Manual Mode for more control options.
Make it your own. The 3-jaw chuck can accommodate objects up to 170 lengths 68 radii (mm) with the tailstock or 225 lengths 68 radii (mm) without the tailstock. You can alternatively use a commercially available suitable chuck. The tailstock center secures objects in place. The base plate features holes on both sides, allowing you to place the headstock and tailstock in multiple locations.
You’ve always admired the sleek design. The Snapmaker 2.0 Rotary Module is designed similarly to the Snapmaker 2.0. It has a stylish look and feels thanks to the metallic grey finish. The secret to its durability is fully anodized aero-grade aluminum.
It concerns the learning curve. Rotary carving is noted for having a steep learning curve and needing to be friendlier to newbies. That’s why we went above and beyond to make the transition from 3-axis to 4-axis machining as painless as possible.
Decide with confidence. If rotary carving goes wrong, hit the Snapmaker 2.0 Emergency Stop Button and restart. The Snapmaker 2.0 Emergency Stop Button is intended to add an extra layer of protection to 3D printing, laser engraving, and CNC carving. Hit the stop button to put an end to your operation.
Peace of mind. The Snapmaker 2.0 Emergency Stop Button may be mounted almost anywhere, allowing you to use the stop button when it matters most quickly. Imagine you wanted to save your art piece or the bit was about to crash into the machine; you clicked the stop button without thinking, and additional possible harm was avoided.
Status indicators that glow for added dependability. The Snapmaker 2.0 Emergency Stop Button is linked to the machine’s primary controller. Upon your order, it sends a stop signal to the controller and features bright status indications, green for standby, flashing red for activated, and alternating green and red for connecting, so you know you’re safe.
Everything is the same. All existing and future add-ons are compatible with the Snapmaker Rotary Module. They use the rotary module with the emergency stop button, resulting in a safer working environment.
